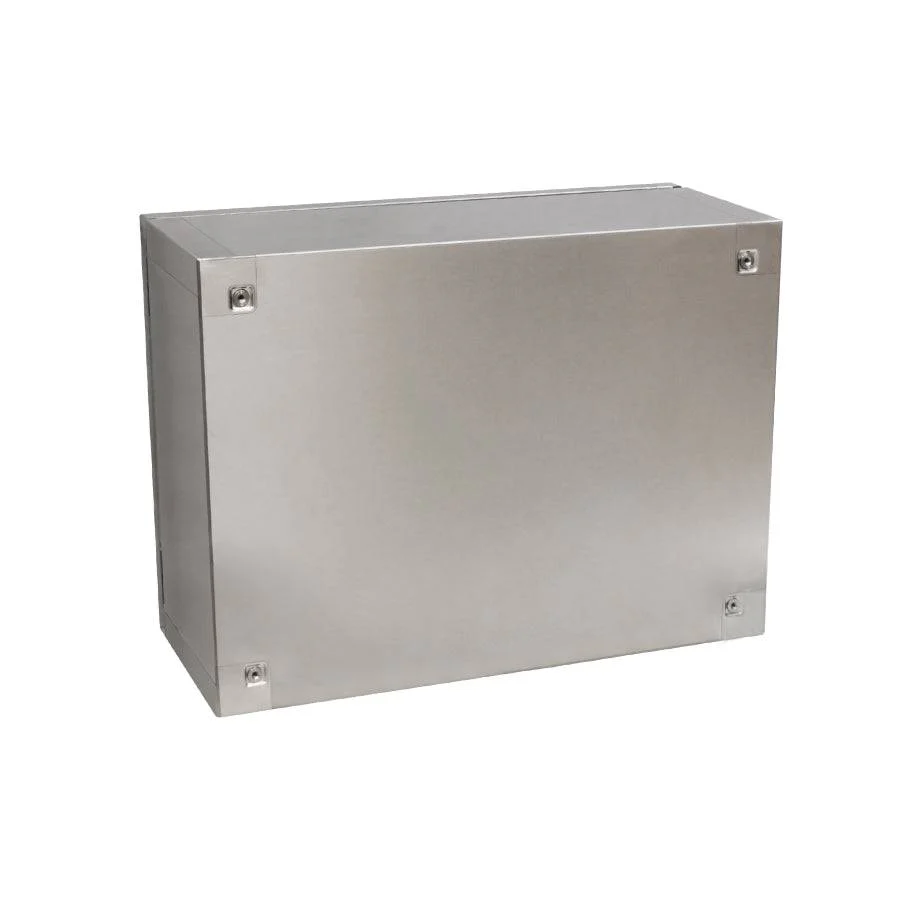

WATERTIGHT STAINLESS STEEL SOLID DOOR BOX
***THIS ITEM MUST SHIP VIA MOTOR FREIGHT DUE TO SIZE. CONTACT US TODAY FOR A HASSLE FREE SHIPPING ESTIMATE***
CPN SERIES:
- Watertight boxes made in AISI 304L (Wnr 1.4307) stainless steel.
- Fine external SATIN finish, medium Scotch-Brite type.
- Galvanized sheet metal wiring plate with 20/10 thick.
- Door opening a max 120° with inner hinges and locks with double wing insert stainless steel.
- Polyurethane seal with robotised application.
- Rear prearrangement for wall fixing with M6 blind threated holes.
PLUS ON DEMAND FOR CUSTOMIZATION (Contact Us):
Material: AISI 316L (Wnr 1.4404)
Drilling: as per drawings on body and door.
Dimensions: specials
Seals: silicone

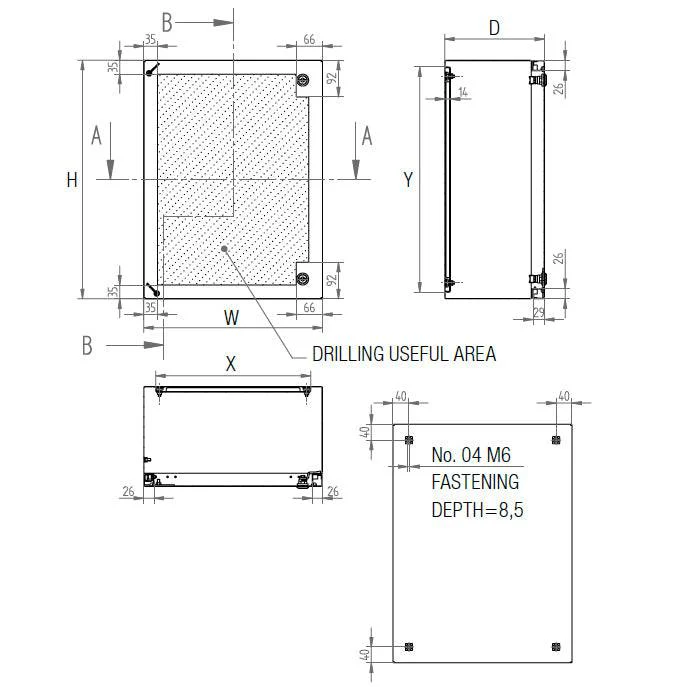

Dimensions & Features:
Nominal Dimensions: 24x18x10" (WxHxD)
| W: | 23.6" (600mm) |
| H: | 17.7" (450mm) |
| D: | 9.84" (250mm) |
| X: | 22.3" (566mm) |
| Y: | 15.47" (393mm) |
| Points of Closure: | 2 |
| Fixing Points: | 4 |
| Hinges: | 2 |
| Certifications: |  |
