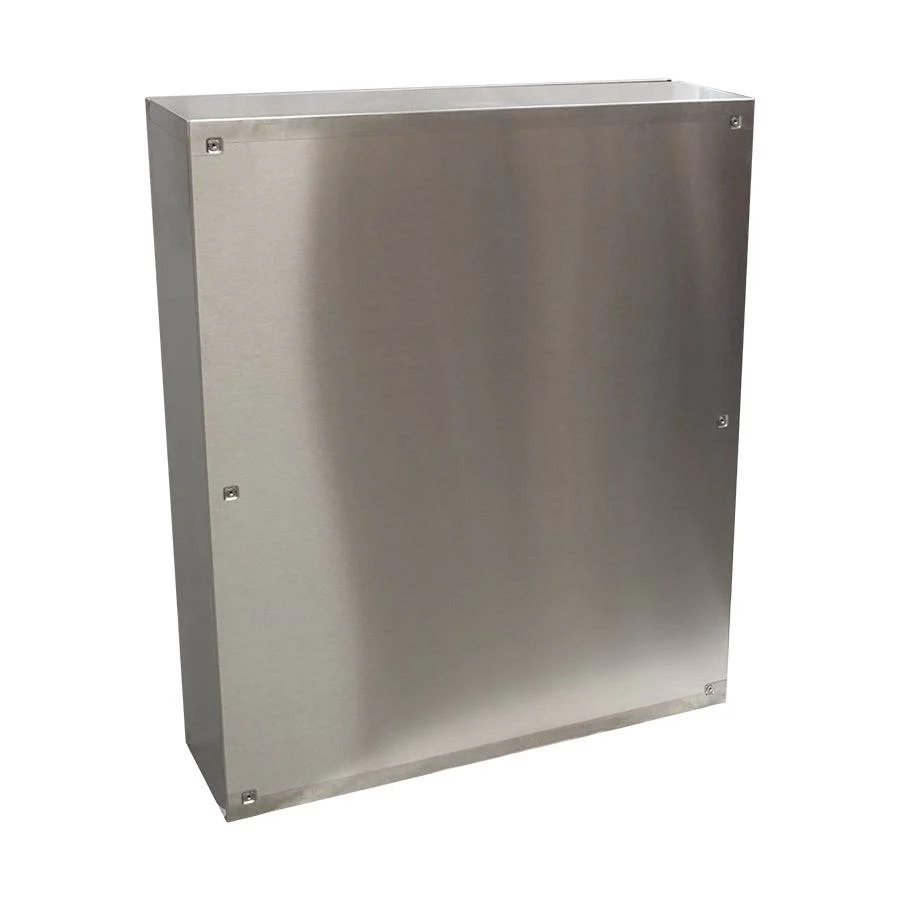

-70%MPGamma CPN10012030 Solid Door Cabinet, Size: 40"x 48" x 12", 304 Stainless Steel, UL Listed—
$464.88
$139.46The Story
WATERTIGHT STAINLESS STEEL SOLID DOOR BOX
CPN SERIES:
- Watertight boxes made in AISI 304L (Wnr 1.4307) stainless steel.
- Fine external SATIN finish, medium Scotch-Brite type.
- Galvanized sheet metal wiring plate with 20/10 thick.
- Door opening a max 120° with inner hinges and locks with double wing insert stainless steel.
- Polyurethane seal with robotised application.
- Rear prearrangement for wall fixing with M6 blind threated holes.
PLUS ON DEMAND FOR CUSTOMIZATION (Contact Us):
Material: AISI 316L (Wnr 1.4404)
Drilling: as per drawings on body and door.
Dimensions: specials
Seals: silicone

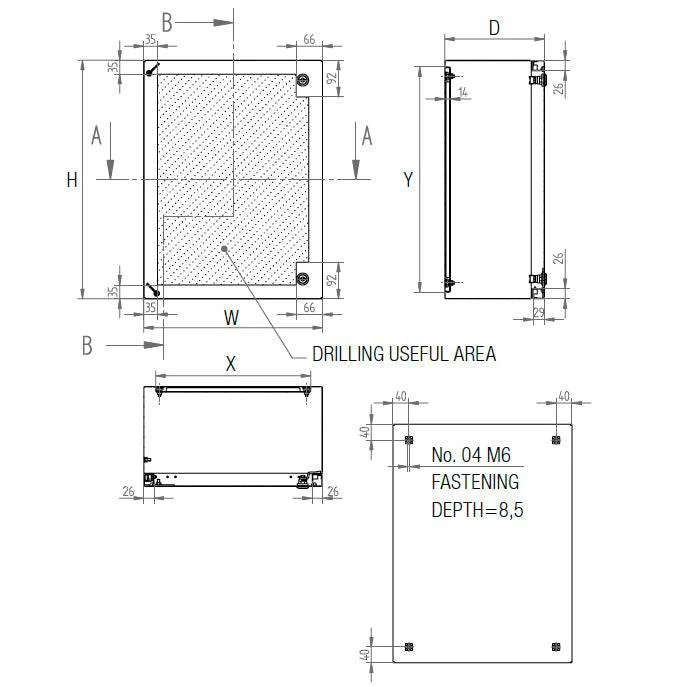

Dimensions & Features:
Nominal Dimensions: 40x48x12" (WxHxD)
| W: | 39.4" (1000mm) |
| H: | 47.24" (1200mm) |
| D: | 11.8" (300mm) |
| X: | 37.0" (943mm) |
| Y: | 38.0" (966mm) |
| Points of Closure: | 2 |
| Fixing Points: | 6 |
| Hinges: | 3 |
| Certifications: |  |
