MPGamma CPN603821 Solid Door Cabinet, Size: 24"x 15" x 8", 304 Stainless Steel, UL Listed
HomeStore

MPGamma CPN603821 Solid Door Cabinet, Size: 24"x 15" x 8", 304 Stainless Steel, UL Listed

MPGamma CPN603821 Solid Door Cabinet, Size: 24"x 15" x 8", 304 Stainless Steel, UL Listed

$40.15

Original: $133.82

-70%
MPGamma CPN603821 Solid Door Cabinet, Size: 24"x 15" x 8", 304 Stainless Steel, UL Listed—

$133.82

$40.15

The Story

WATERTIGHT STAINLESS STEEL SOLID DOOR BOX

***THIS ITEM MUST SHIP VIA MOTOR FREIGHT DUE TO SIZE. CONTACT US TODAY FOR A HASSLE FREE SHIPPING ESTIMATE***

CPN SERIES:

  • Watertight boxes made in AISI 304L (Wnr 1.4307) stainless steel.
  • Fine external SATIN finish, medium Scotch-Brite type.
  • Galvanized sheet metal wiring plate with 20/10 thick.
  • Door opening a max 120° with inner hinges and locks with double wing insert stainless steel.
  • Polyurethane seal with robotised application.
  • Rear prearrangement for wall fixing with M6 blind threated holes.

PLUS ON DEMAND FOR CUSTOMIZATION (Contact Us):

Material: AISI 316L (Wnr 1.4404)
Drilling: as per drawings on body and door.
Dimensions: specials
Seals: silicone

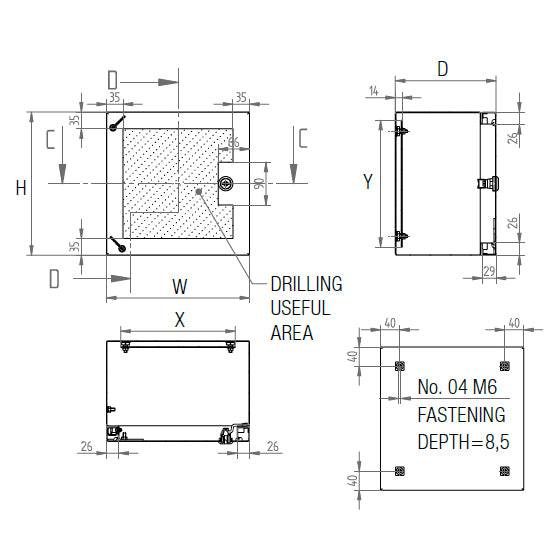

Dimensions & Features:

Nominal Dimensions: 24x15x8" (WxHxD)

W: 23.6" (600mm)
H: 15.0" (380mm)
D: 8.27" (210mm)
X: 22.3" (566mm)
Y: 12.72" (323mm)
Points of Closure: 1
Fixing Points: 4
Hinges: 2
Certifications:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:


Videos

Check out our YouTube channel!




MPGamma CPN603821 Solid Door Cabinet, Size: 24"x 15" x 8", 304 Stainless Steel, UL Listed - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

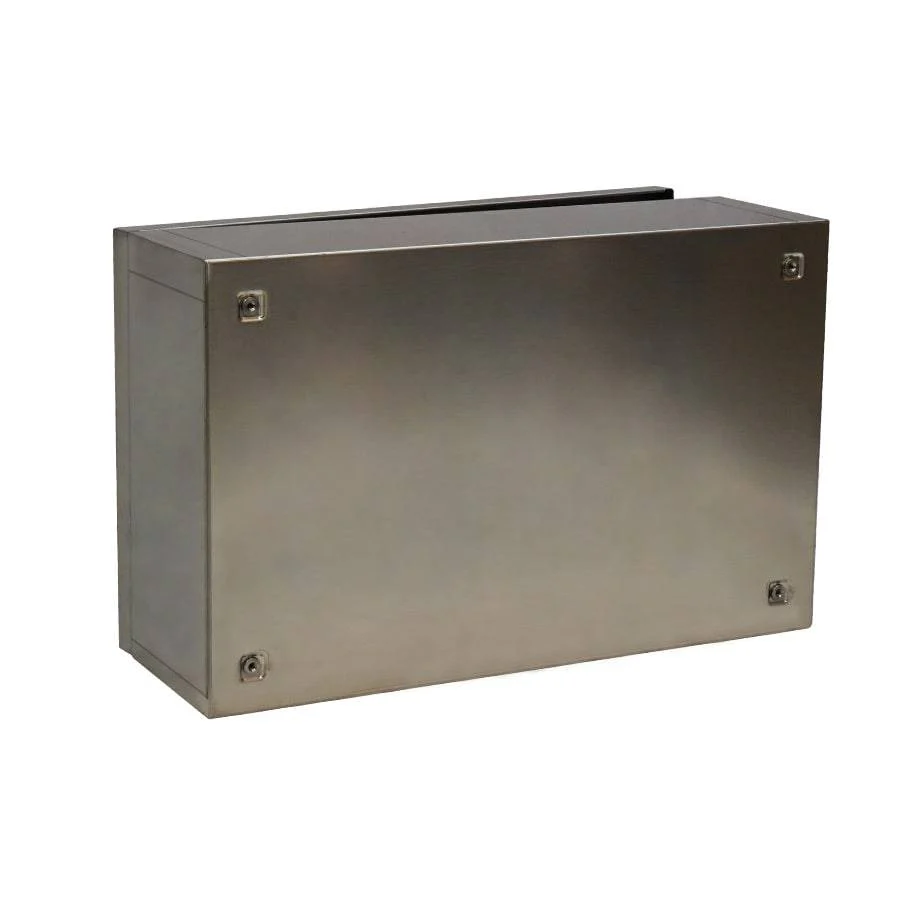

MPGamma CPN603821 Solid Door Cabinet, Size: 24"x 15" x 8", 304 Stainless Steel, UL Listed - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

MPGamma CPN603821 Solid Door Cabinet, Size: 24"x 15" x 8", 304 Stainless Steel, UL Listed - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

WATERTIGHT STAINLESS STEEL SOLID DOOR BOX

***THIS ITEM MUST SHIP VIA MOTOR FREIGHT DUE TO SIZE. CONTACT US TODAY FOR A HASSLE FREE SHIPPING ESTIMATE***

CPN SERIES:

  • Watertight boxes made in AISI 304L (Wnr 1.4307) stainless steel.
  • Fine external SATIN finish, medium Scotch-Brite type.
  • Galvanized sheet metal wiring plate with 20/10 thick.
  • Door opening a max 120° with inner hinges and locks with double wing insert stainless steel.
  • Polyurethane seal with robotised application.
  • Rear prearrangement for wall fixing with M6 blind threated holes.

PLUS ON DEMAND FOR CUSTOMIZATION (Contact Us):

Material: AISI 316L (Wnr 1.4404)
Drilling: as per drawings on body and door.
Dimensions: specials
Seals: silicone


Dimensions & Features:

Nominal Dimensions: 24x15x8" (WxHxD)

W: 23.6" (600mm)
H: 15.0" (380mm)
D: 8.27" (210mm)
X: 22.3" (566mm)
Y: 12.72" (323mm)
Points of Closure: 1
Fixing Points: 4
Hinges: 2
Certifications:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:


Videos

Check out our YouTube channel!
