MPGamma CPN507025 Solid Door Cabinet, Size: 20"x 28" x 10", 304 Stainless Steel, UL Listed
HomeStore

MPGamma CPN507025 Solid Door Cabinet, Size: 20"x 28" x 10", 304 Stainless Steel, UL Listed

MPGamma CPN507025 Solid Door Cabinet, Size: 20"x 28" x 10", 304 Stainless Steel, UL Listed

$58.46

Original: $194.87

-70%
MPGamma CPN507025 Solid Door Cabinet, Size: 20"x 28" x 10", 304 Stainless Steel, UL Listed—

$194.87

$58.46

The Story

WATERTIGHT STAINLESS STEEL SOLID DOOR BOX

***THIS ITEM MUST SHIP VIA MOTOR FREIGHT DUE TO SIZE. CONTACT US TODAY FOR A HASSLE FREE SHIPPING ESTIMATE***

CPN SERIES:

  • Watertight boxes made in AISI 304L (Wnr 1.4307) stainless steel.
  • Fine external SATIN finish, medium Scotch-Brite type.
  • Galvanized sheet metal wiring plate with 20/10 thick.
  • Door opening a max 120° with inner hinges and locks with double wing insert stainless steel.
  • Polyurethane seal with robotised application.
  • Rear prearrangement for wall fixing with M6 blind threated holes.

PLUS ON DEMAND FOR CUSTOMIZATION (Contact Us):

Material: AISI 316L (Wnr 1.4404)
Drilling: as per drawings on body and door.
Dimensions: specials
Seals: silicone

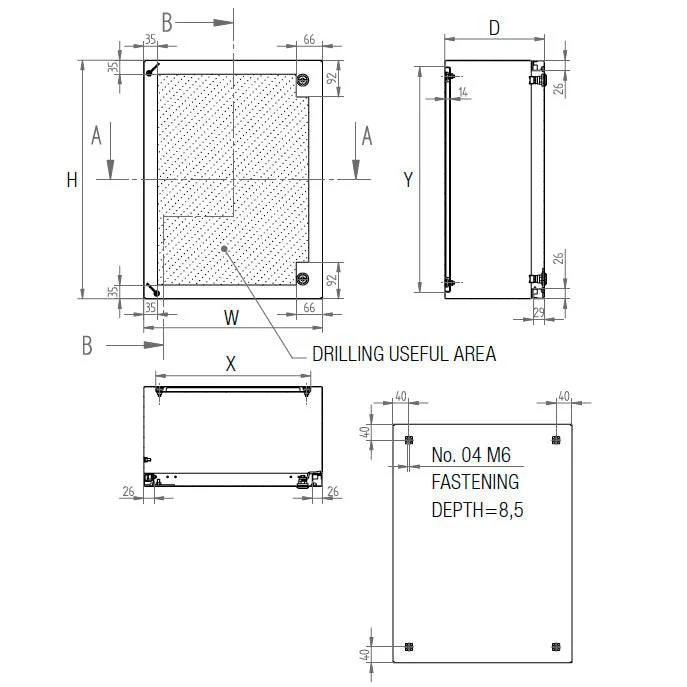

Dimensions & Features:

Nominal Dimensions: 20x28x10" (WxHxD)

W: 19.7" (500mm)
H: 27.6" (700mm)
D: 9.84" (250mm)
X: 17.44" (443mm)
Y: 26.2" (666mm)
Points of Closure: 2
Fixing Points: 4
Hinges: 2
Certifications:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:


Videos

Check out our YouTube channel!




MPGamma CPN507025 Solid Door Cabinet, Size: 20"x 28" x 10", 304 Stainless Steel, UL Listed - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

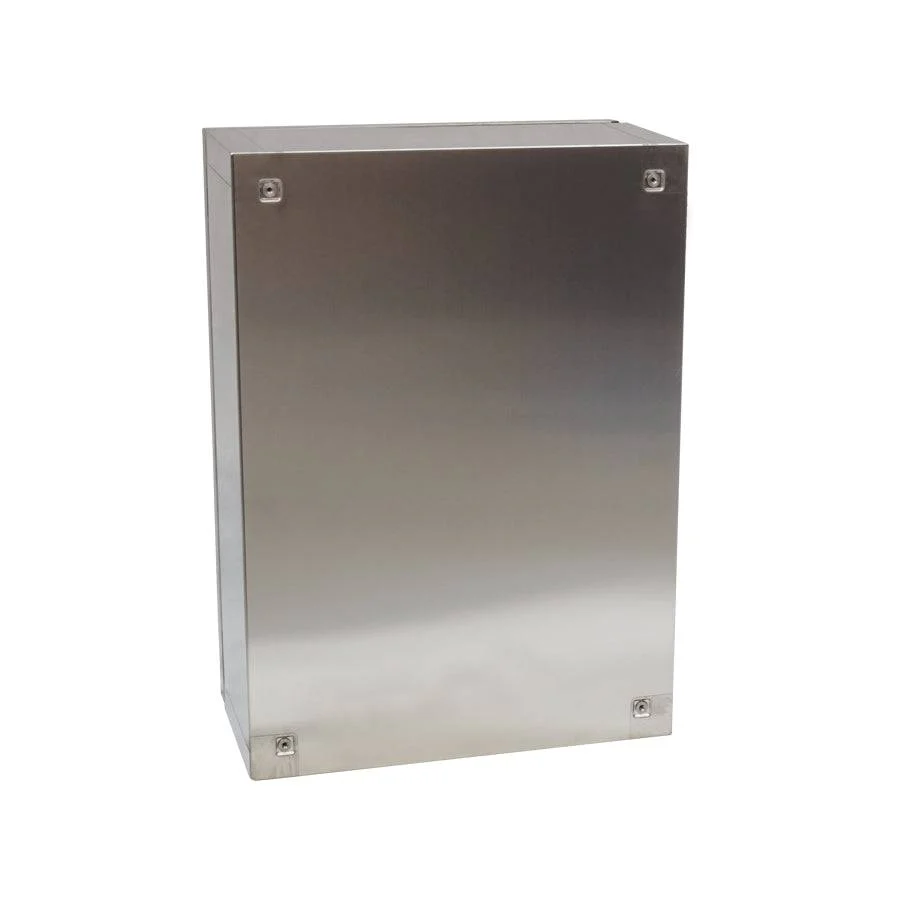

MPGamma CPN507025 Solid Door Cabinet, Size: 20"x 28" x 10", 304 Stainless Steel, UL Listed - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

MPGamma CPN507025 Solid Door Cabinet, Size: 20"x 28" x 10", 304 Stainless Steel, UL Listed - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

WATERTIGHT STAINLESS STEEL SOLID DOOR BOX

***THIS ITEM MUST SHIP VIA MOTOR FREIGHT DUE TO SIZE. CONTACT US TODAY FOR A HASSLE FREE SHIPPING ESTIMATE***

CPN SERIES:

  • Watertight boxes made in AISI 304L (Wnr 1.4307) stainless steel.
  • Fine external SATIN finish, medium Scotch-Brite type.
  • Galvanized sheet metal wiring plate with 20/10 thick.
  • Door opening a max 120° with inner hinges and locks with double wing insert stainless steel.
  • Polyurethane seal with robotised application.
  • Rear prearrangement for wall fixing with M6 blind threated holes.

PLUS ON DEMAND FOR CUSTOMIZATION (Contact Us):

Material: AISI 316L (Wnr 1.4404)
Drilling: as per drawings on body and door.
Dimensions: specials
Seals: silicone


Dimensions & Features:

Nominal Dimensions: 20x28x10" (WxHxD)

W: 19.7" (500mm)
H: 27.6" (700mm)
D: 9.84" (250mm)
X: 17.44" (443mm)
Y: 26.2" (666mm)
Points of Closure: 2
Fixing Points: 4
Hinges: 2
Certifications:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:


Videos

Check out our YouTube channel!
