MPGamma SDN404015 - Stainless Steel Electrical Junction Box, Size: 16" x 16" x 6", 304 Stainless Steel, UL Listed
HomeStore

MPGamma SDN404015 - Stainless Steel Electrical Junction Box, Size: 16" x 16" x 6", 304 Stainless Steel, UL Listed

MPGamma SDN404015 - Stainless Steel Electrical Junction Box, Size: 16" x 16" x 6", 304 Stainless Steel, UL Listed

$24.69

Original: $82.29

-70%
MPGamma SDN404015 - Stainless Steel Electrical Junction Box, Size: 16" x 16" x 6", 304 Stainless Steel, UL Listed—

$82.29

$24.69

The Story

WATERTIGHT STAINLESS STEEL JUNCTION BOXES

***THIS ITEM MUST SHIP VIA MOTOR FREIGHT DUE TO SIZE. CONTACT US TODAY FOR A HASSLE FREE SHIPPING ESTIMATE***

SDN SERIES:

  • Watertight boxes made in AISI 304L (Wnr 1.4307) stainless steel.
  • Fine external SATIN finish, medium Scotch-Brite type.
  • Cover screwed to the box body with leak-proof clamping screws.
  • Sheet metal thickness values of the body and cover from 10/10mm to 12/10mm depending on the size.
  • Polyurethane seal with robotized application.
  • Rear prearrangement for wall fixing with M5 blind threaded holes.

PLUS ON DEMAND FOR CUSTOMIZATION (Contact Us):

Material: AISI 316L (Wnr 1.4404)
Drilling: as per drawings on body and door.
Dimensions: specials
Seals: silicone

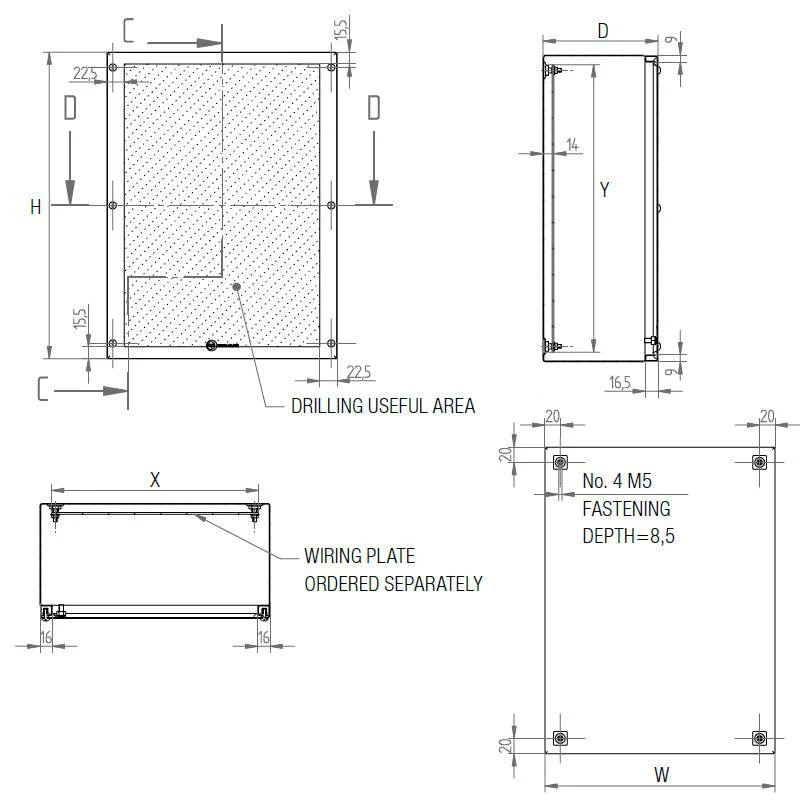

Dimensions & Features:

Nominal Dimensions: 16x16x6" (WxHxD)

L: 15.7" (400mm)
H: 15.7" (400mm)
P: 5.91" (150mm)
X: 14.6" (370mm)
Y: 14.8" (375mm)
Points of Closure: 6
Fixing Points: 4
Certifications:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:


Videos

Check out our YouTube channel!

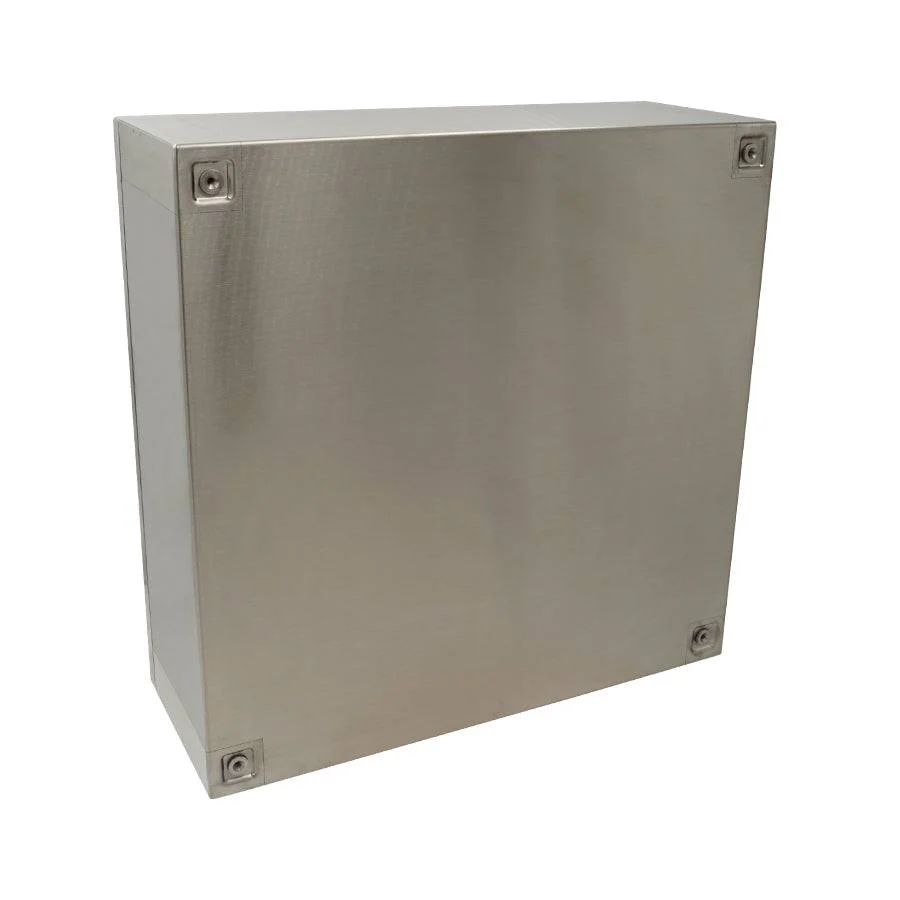

MPGamma SDN404015 - Stainless Steel Electrical Junction Box, Size: 16" x 16" x 6", 304 Stainless Steel, UL Listed - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

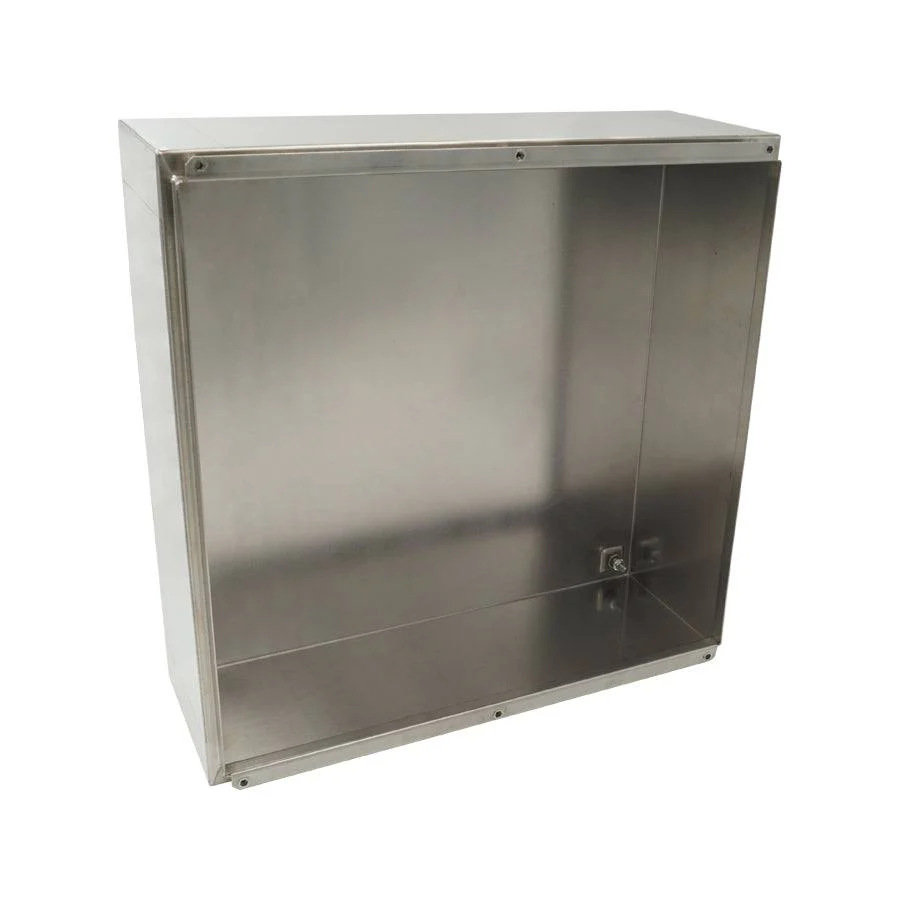

MPGamma SDN404015 - Stainless Steel Electrical Junction Box, Size: 16" x 16" x 6", 304 Stainless Steel, UL Listed - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

MPGamma SDN404015 - Stainless Steel Electrical Junction Box, Size: 16" x 16" x 6", 304 Stainless Steel, UL Listed - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

MPGamma SDN404015 - Stainless Steel Electrical Junction Box, Size: 16" x 16" x 6", 304 Stainless Steel, UL Listed - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

WATERTIGHT STAINLESS STEEL JUNCTION BOXES

***THIS ITEM MUST SHIP VIA MOTOR FREIGHT DUE TO SIZE. CONTACT US TODAY FOR A HASSLE FREE SHIPPING ESTIMATE***

SDN SERIES:

  • Watertight boxes made in AISI 304L (Wnr 1.4307) stainless steel.
  • Fine external SATIN finish, medium Scotch-Brite type.
  • Cover screwed to the box body with leak-proof clamping screws.
  • Sheet metal thickness values of the body and cover from 10/10mm to 12/10mm depending on the size.
  • Polyurethane seal with robotized application.
  • Rear prearrangement for wall fixing with M5 blind threaded holes.

PLUS ON DEMAND FOR CUSTOMIZATION (Contact Us):

Material: AISI 316L (Wnr 1.4404)
Drilling: as per drawings on body and door.
Dimensions: specials
Seals: silicone


Dimensions & Features:

Nominal Dimensions: 16x16x6" (WxHxD)

L: 15.7" (400mm)
H: 15.7" (400mm)
P: 5.91" (150mm)
X: 14.6" (370mm)
Y: 14.8" (375mm)
Points of Closure: 6
Fixing Points: 4
Certifications:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:


Videos

Check out our YouTube channel!
