BNT2 - 16-14 AWG Non Insulated Butt Splice Connectors, 9/16" Length, UL Approved, 100 Pieces
HomeStore

BNT2 - 16-14 AWG Non Insulated Butt Splice Connectors, 9/16" Length, UL Approved, 100 Pieces

BNT2 - 16-14 AWG Non Insulated Butt Splice Connectors, 9/16" Length, UL Approved, 100 Pieces

$11.84
BNT2 - 16-14 AWG Non Insulated Butt Splice Connectors, 9/16" Length, UL Approved, 100 Pieces—
$11.84

The Story

NON INSULATED BUTT SPLICE CONNECTORS

Non Insulated butt splice connectors protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively. For use with copper wires only.


Dimensions & Features:

Wire Size: 16-14 AWG
L: 15mm (0.59")
D:
 3.9mm (0.15")
D1: 2.3mm (0.09")
Barrel: Seamless
Configuration: Straight
Material: Tin Plated Copper
Max Electrical Current: 30 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
3M: M14BCX
Burndy: YSV14
Elecdirect: B7B
Panduit: BS14-C
Thomas Betts: 2B-14
Tyco AMP: 31819
Weidmuller: 1493010000

Documents

Click to view product spec sheet:

Videos

Check out our YouTube channel!

BNT2 - 16-14 AWG Non Insulated Butt Splice Connectors, 9/16" Length, UL Approved, 100 Pieces - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

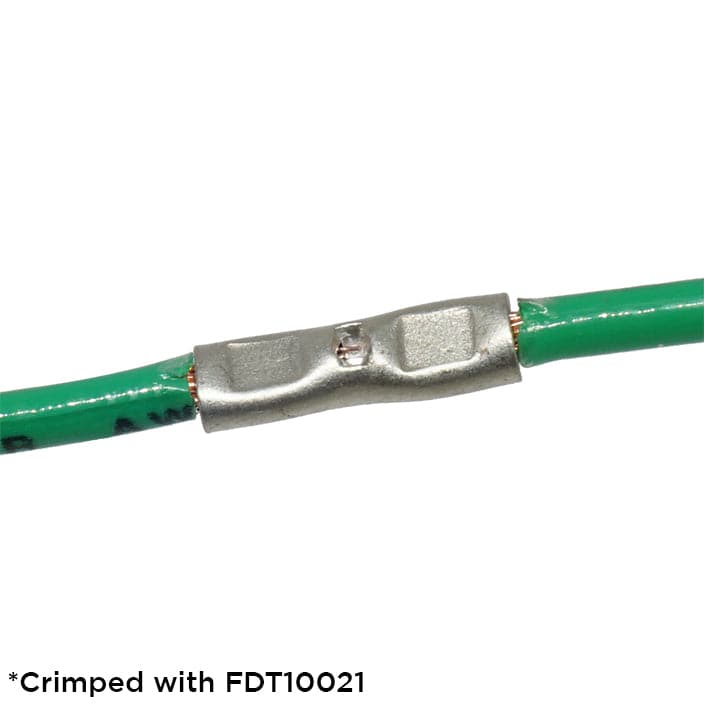

BNT2 - 16-14 AWG Non Insulated Butt Splice Connectors, 9/16" Length, UL Approved, 100 Pieces - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

NON INSULATED BUTT SPLICE CONNECTORS

Non Insulated butt splice connectors protect the electrical connections from wire pull-outs, abrasion and mechanical abuse. Butt splice connectors must be crimped on both ends to work effectively. For use with copper wires only.


Dimensions & Features:

Wire Size: 16-14 AWG
L: 15mm (0.59")
D:
 3.9mm (0.15")
D1: 2.3mm (0.09")
Barrel: Seamless
Configuration: Straight
Material: Tin Plated Copper
Max Electrical Current: 30 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
3M: M14BCX
Burndy: YSV14
Elecdirect: B7B
Panduit: BS14-C
Thomas Betts: 2B-14
Tyco AMP: 31819
Weidmuller: 1493010000

Documents

Click to view product spec sheet:

Videos

Check out our YouTube channel!
